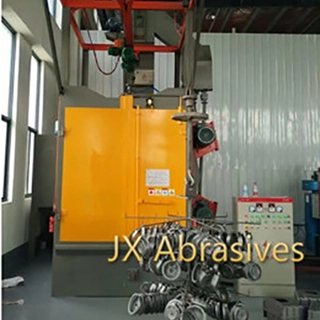

Hanger Shot Blasting Machine for Auto Parts
Key Specifications / Features
Model No.: JX-HBM-04
Hits: 554
The hook type shot blasting machine is used in the surface treatment of small, medium or large auto Parts.
Request a quote
Tags
Detail Information
The Hanger Shot Blasting Machine for Auto Parts is used in the surface treatment of small, medium or large auto Parts.
It is made for increasing roughness of surface and shot peening to raise fatigue strength.
Main Technical Parameter:
Size of Blasting Jobs:
Max. Size for work piece (diameter*height) Ф1100×1200mm.
Blast nozzles(2 set) diameter of impeller: ф250 mm.
Rotating speed: 2900r/min.
Max.volume for blasting: 2×180kg/min.
Power: 2×11kw.
Lifting Hook:
(double) Max. hangering weight: 1000kg.
Speed of autorotation: 2.8m/min.
Self-Rotating power: 0.55kw.
Running speed: 20m/min.
Walking power: 0.2kw.
lifting speed: 8m/min.
Lifting power: 1.5kw.
Pulse Jet Type 1 set:
Dust Collector Model SXLT-9.
Cartridge Filter: Φ325 × 660 mm.
Cartridge Filter Quantity: 9pcs.
Air Volume: 9500m3/hr.
Centrifugal Air Fan: 7.5kw.
It is made for increasing roughness of surface and shot peening to raise fatigue strength.
Main Technical Parameter:
Size of Blasting Jobs:
Max. Size for work piece (diameter*height) Ф1100×1200mm.
Blast nozzles(2 set) diameter of impeller: ф250 mm.
Rotating speed: 2900r/min.
Max.volume for blasting: 2×180kg/min.
Power: 2×11kw.
Lifting Hook:
(double) Max. hangering weight: 1000kg.
Speed of autorotation: 2.8m/min.
Self-Rotating power: 0.55kw.
Running speed: 20m/min.
Walking power: 0.2kw.
lifting speed: 8m/min.
Lifting power: 1.5kw.
Pulse Jet Type 1 set:
Dust Collector Model SXLT-9.
Cartridge Filter: Φ325 × 660 mm.
Cartridge Filter Quantity: 9pcs.
Air Volume: 9500m3/hr.
Centrifugal Air Fan: 7.5kw.
Machine Details:
These Type of Machines Consist of Under Mentioned Parts:
1. Main Blast Cabinet with inspection Door
2. Blast Wheel Units with Drive Mechanism.
3. Abrasive circulation unit
4. Bucket Elevator unit
5. Abrasive Separation/Cleaning system with Storage Hopper
6. Dust Collector with Cleaning Mechanism.
7. Roller Conveyor system at Inlet & Outlet Side.
8. Control Panel with PLC Control System.
1. Main Blast Cabinet with inspection Door
2. Blast Wheel Units with Drive Mechanism.
3. Abrasive circulation unit
4. Bucket Elevator unit
5. Abrasive Separation/Cleaning system with Storage Hopper
6. Dust Collector with Cleaning Mechanism.
7. Roller Conveyor system at Inlet & Outlet Side.
8. Control Panel with PLC Control System.
JX Shot Blasting Machine offers upgraded transport technology, high-efficient blast wheels and multiple machine sizes and types adhere to the customer’s shot-blasting needs. If you have special requirements, please download Blasting Equipments Questionnaire for your reference.
