GP GL GH Steel Grit
Key Specifications / Features
Model No.: JX 15 SG 01
Hits: 4922
Buy GP GL GH steel grit from JX Abrasives Manufacturer in China, SAE J444 steel grit, Size G10, G12, G14, G16, G18, G25, G40, G50, G80, G120.
Request a quote
PDF
Tags

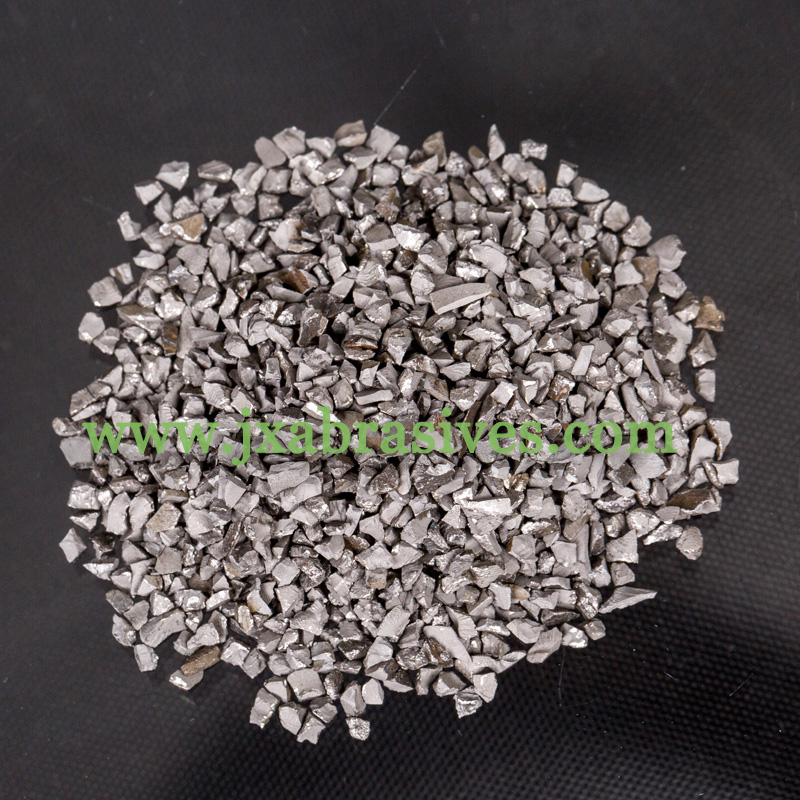

Next: Rail Steel Grit
Detail Information
Quick Details:
Density: >7.3g/cm3.
Chemical Composition: C 0.80-1.2%, Si ≥0.4%, Mn 0.60-1.2%, S≤0.05%, P≤0.05%.
Hardness(±3HRC): HRC40-51, HRC47-56, HRC54-61, HRC61-65.
Description:

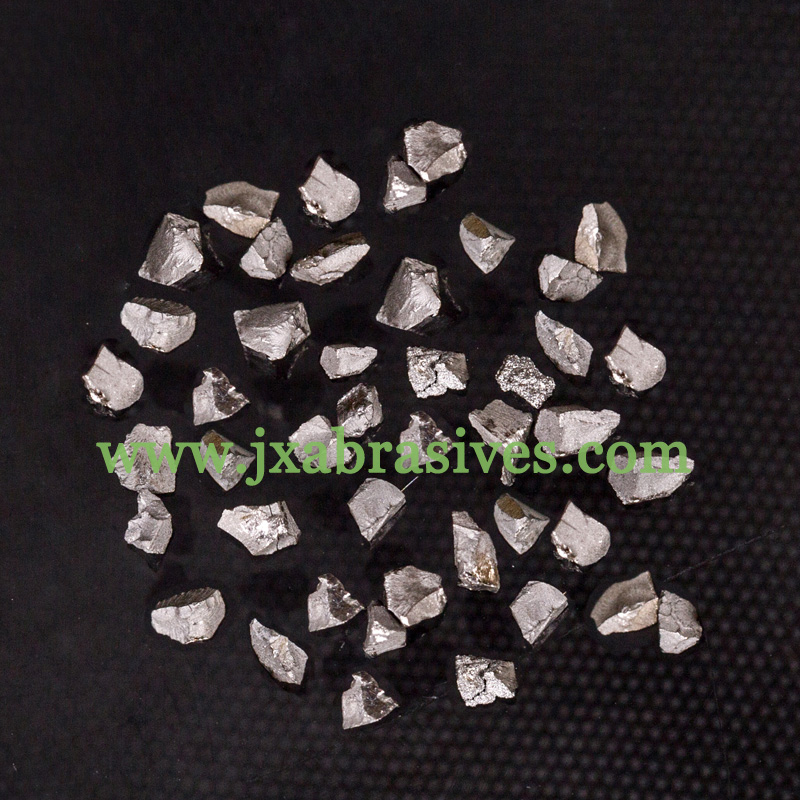

It’s crushed from high quality steel shot. The resulting angular particles were screened to range sizes G10, G12, G14, G16, G18, G25, G40, G50, G80, G120 as described in SAE J444. According to different requirement, do the heat treatment to control hardness to standard GP, GL, GH.
If you want to know JX Steel Grit MSDS, please click here.
Specification for Jinxing Steel Grit:
Density: >7.3g/cm3.
Chemical Composition: C 0.80-1.2%, Si ≥0.4%, Mn 0.60-1.2%, S≤0.05%, P≤0.05%.
Hardness(±3HRC): HRC40-51, HRC47-56, HRC54-61, HRC61-65.
Description:
It’s crushed from high quality steel shot. The resulting angular particles were screened to range sizes G10, G12, G14, G16, G18, G25, G40, G50, G80, G120 as described in SAE J444. According to different requirement, do the heat treatment to control hardness to standard GP, GL, GH.
If you want to know JX Steel Grit MSDS, please click here.
Specification for Jinxing Steel Grit:
| Number of | Standard | Screw mesh | G10 | G12 | G14 | G16 | G18 | G25 | G40 | G50 | G80 | G120 |
| screen | (mm) | (inch) | SG240 | SG200 | SG170 | SG140 | SG120 | SG100 | SG70 | SG50 | SG30 | SG20 |
| 7 | 2.8 | 0.111 | 0 | |||||||||
| 8 | 2.36 | 0.0937 | - | 0 | ||||||||
| 10 | 2 | 0.0789 | 80 | - | 0 | |||||||
| 12 | 1.7 | 0.0661 | 90 | 80 | - | 0 | ||||||
| 14 | 1.4 | 0.0555 | 90 | 80 | - | 0 | ||||||
| 16 | 1.18 | 0.0469 | 90 | 75 | - | 0 | ||||||
| 18 | 1 | 0.0394 | 85 | 75 | - | 0 | ||||||
| 20 | 0.85 | 0.0331 | - | - | - | |||||||
| 25 | 0.71 | 0.0278 | 85 | 70 | - | 0 | ||||||
| 30 | 0.6 | 0.0234 | - | - | - | |||||||
| 35 | 0.5 | 0.0197 | - | - | - | |||||||
| 40 | 0.425 | 0.0165 | 80 | 70 | - | 0 | ||||||
| 45 | 0.355 | 0.0139 | - | - | - | |||||||
| 50 | 0.3 | 0.0117 | 80 | 65 | - | 0 | ||||||
| 80 | 0.18 | 0.007 | 75 | 65 | - | |||||||
| 120 | 0.125 | 0.0049 | 75 | 60 | ||||||||
| 200 | 0.075 | 0.0029 | 70 |
