Automatic Shot Blasting Machine with Hoist for Hot Rolled Bars Sa 2.5

Key Specifications / Features

Model No.: JX- RCBM-08

Shot Blasting Machine Manufacturer JX Offers Automatic Shot Blasting Machine with Hoist, Screw Conveyor Type, for Hot Rolled Bars, Grade Sa 2.5.

Request a quote

Detail Information

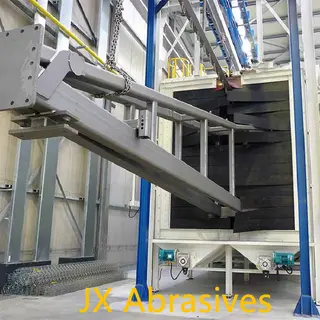

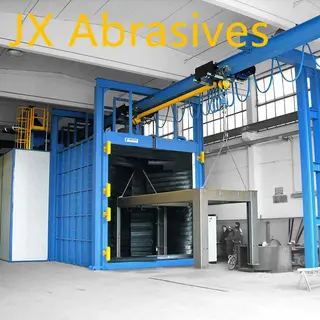

JX Hoist Shot Blasting Machines are designed for blasting in heavy industry. Special attention has been paid to the positioning of turbines that provide the optimum efficiency and uniform cleaning of workpieces.

Typical Application:
1) Heavy industry
2) Rolling chip removal
3) Coating preparation

Machine Details:

These Types of Machines Comprised of Undermentioned Parts:
1. Main Blast Cabinet with inspection Door.
2. Blast Wheel Units with Drive Mechanism.
3. Abrasive circulation unit.
4. Bucket Elevator unit.
5. Abrasive Separation/Cleaning System with Storage Hopper.
6. Dust Collector with Cleaning Mechanism.
7. Hoist Conveyor system at Inlet & Outlet Side.
8. Control Panel with PLC Control System.

Technology Parameter(Customized is available):
1) Size of workpiece: W:1300mm X H: 1800mm X L: 3000mm
2) Max. loading capacity: 5 tons
3) Blasting speed & pass speed: 0.5-2.5m/min Sa2.5
Grade: A-B Sa2.5 GB/T 8923-1988 standard
Roughness of steel plate: Ra25-65um(adjustable) depends on diameter of steel shot
4) Noise: ≤92dB in operating area
5) Concentration of dust emission: ≤100 mg/m3
6) Total power: 199kw
7) Air compressed consumption: 1.2~1.5m3/min air pressure 0.5-0.7MPa

If you' re interested in our style machine, welcome to contact us to get more detailed info.

This machine is not a standard machine, any parameters can be customized according to clients' requirements, so any further information please contact with us, our skilled engineer team will give you the most professional and cost-effective solutions.

jx abrasive standard direct drive blast wheel with high performance

JX Shot Blasting Machine offers upgraded transport technology, high-efficient blast wheels and multiple machine sizes and types adhere to the customer's shot-blasting needs. If you have special requirements, please download Blasting Equipment Questionnaire for your reference.
